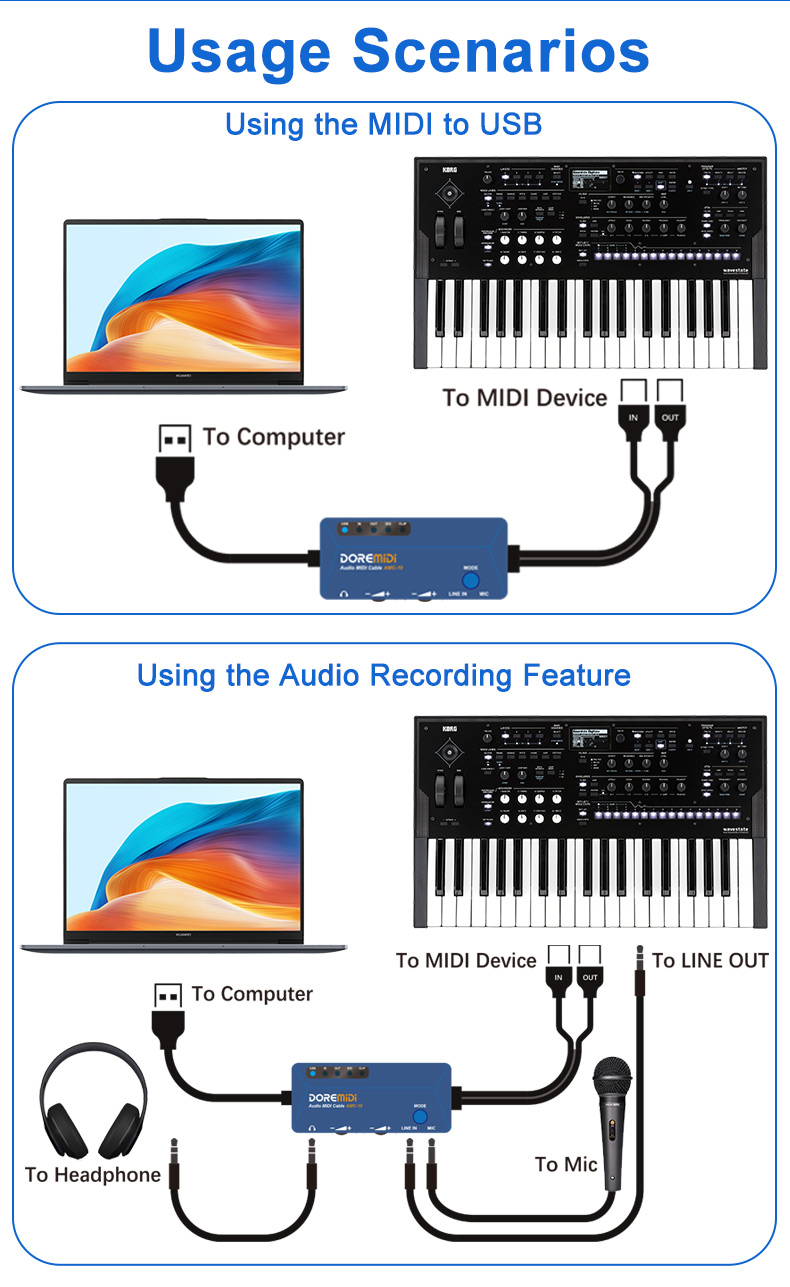

The Audio MIDI Cable (AMC-10) is a USB converter that has both sound card and MIDI functions.

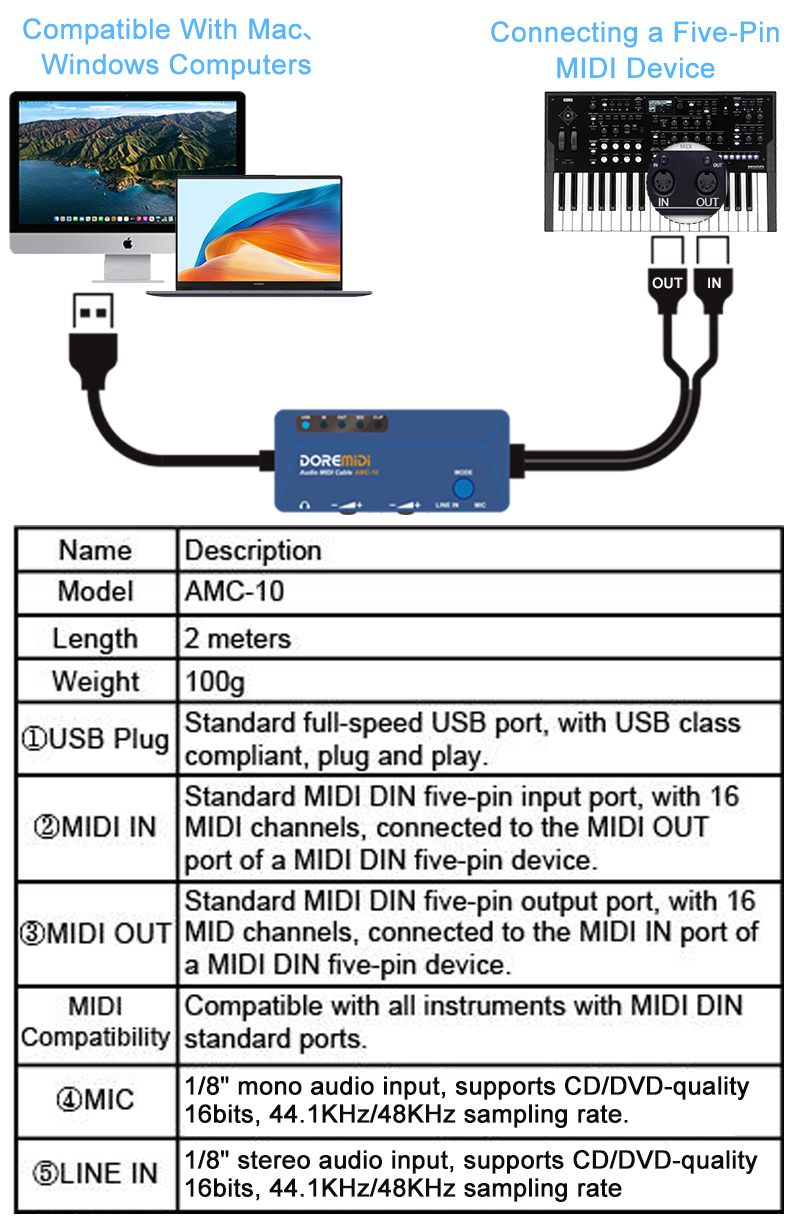

The AMC-10 has standard MIDI DIN five-pin input and output plugs, as well as a full-speed standard USB-MIDI interface,
16 channels of standard MIDI,and can communicate all standard MIDI commands.

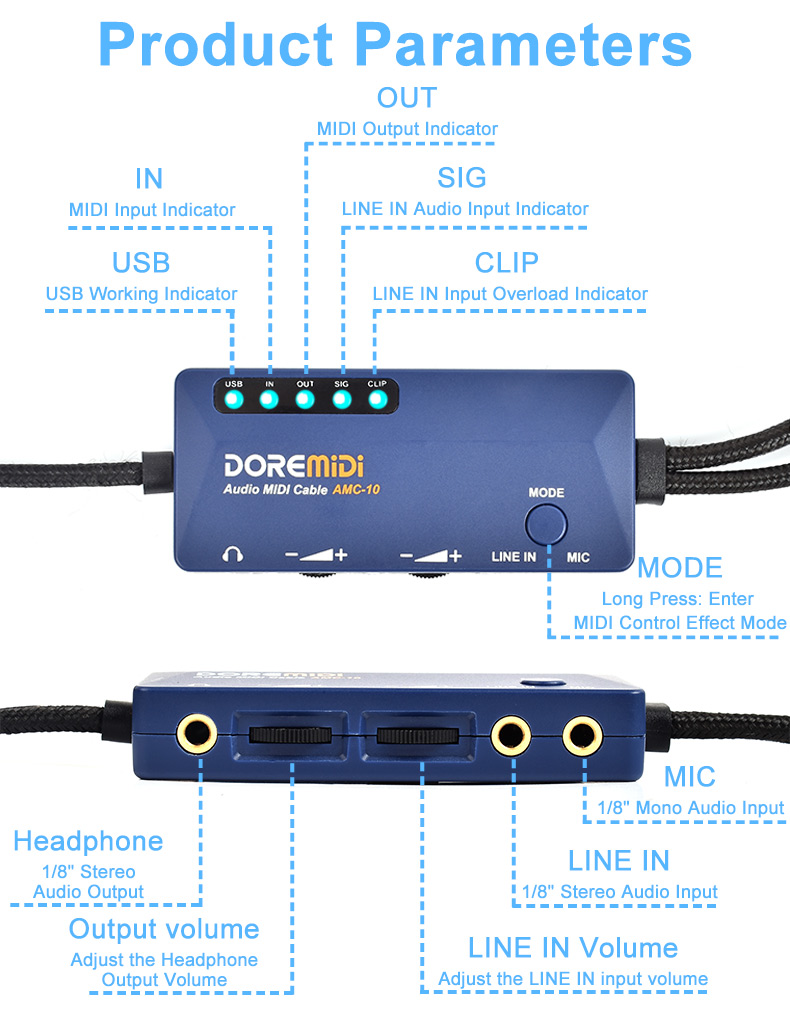

In addition, the AMC-10 also adds audio recording and monitoring functions, comes with audio effects such as reverb, chorus, 3D,
and up to 10 EQ parameters that can be adjusted, and supports MIDI control of effect parameters.







Download Manual: Audio MIDI_Cable(AMC-10) Instruction.pdf
MIDI audio effects control software download:
Windows: AMC Tool.exe
MacOS: AMC Tool.dmg
| Version | Firmware Download | Upgrade Content | Upgrade Target | Note |
| V2.4 | AMC-10_V2.4 | Improve the left and right channels of headphone output. | Users who purchased this product before June 5, 2025, and users who purchased it after that do not need to upgrade the firmware. |
