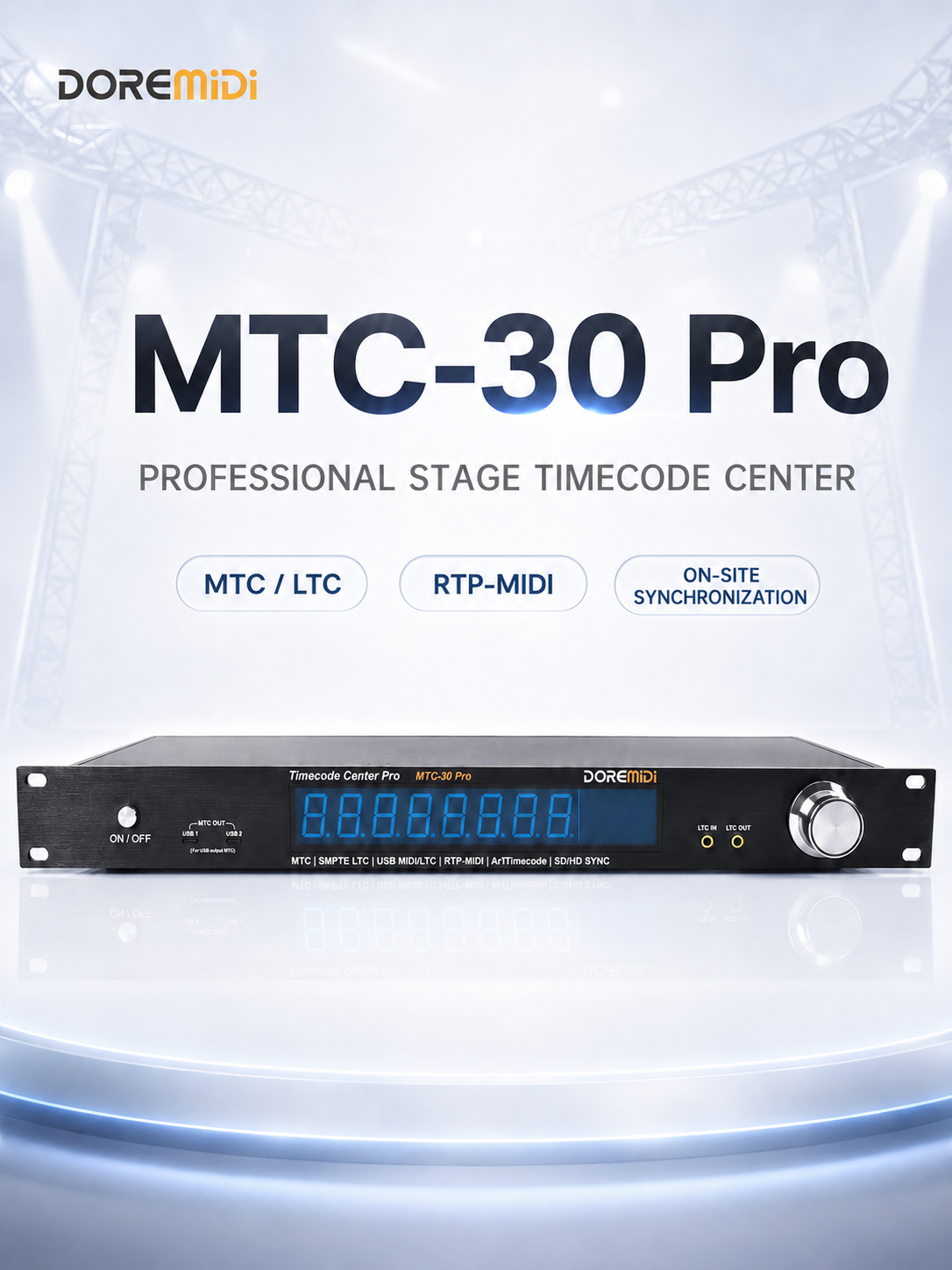

Timecode Center Pro

MIDITimecode Center Pro (MTC-30 Pro) is a multifunctional timecode center designedby DOREMiDi.

It can be used for timecode synchronization and conversion amongcomputers,

MIDI devices, lighting control systems, audio equipment, video syncdevices, and LTC timecode devices.

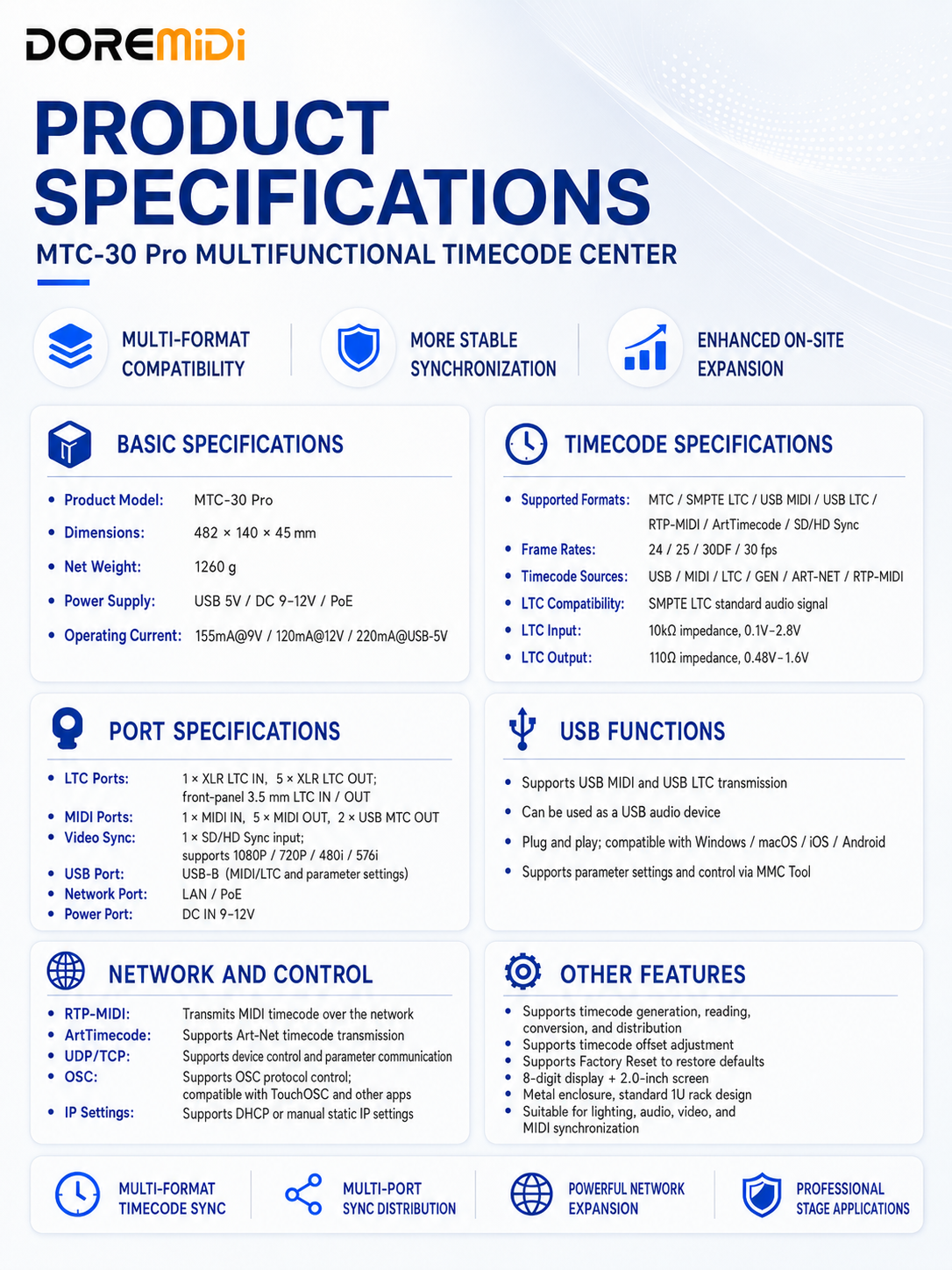

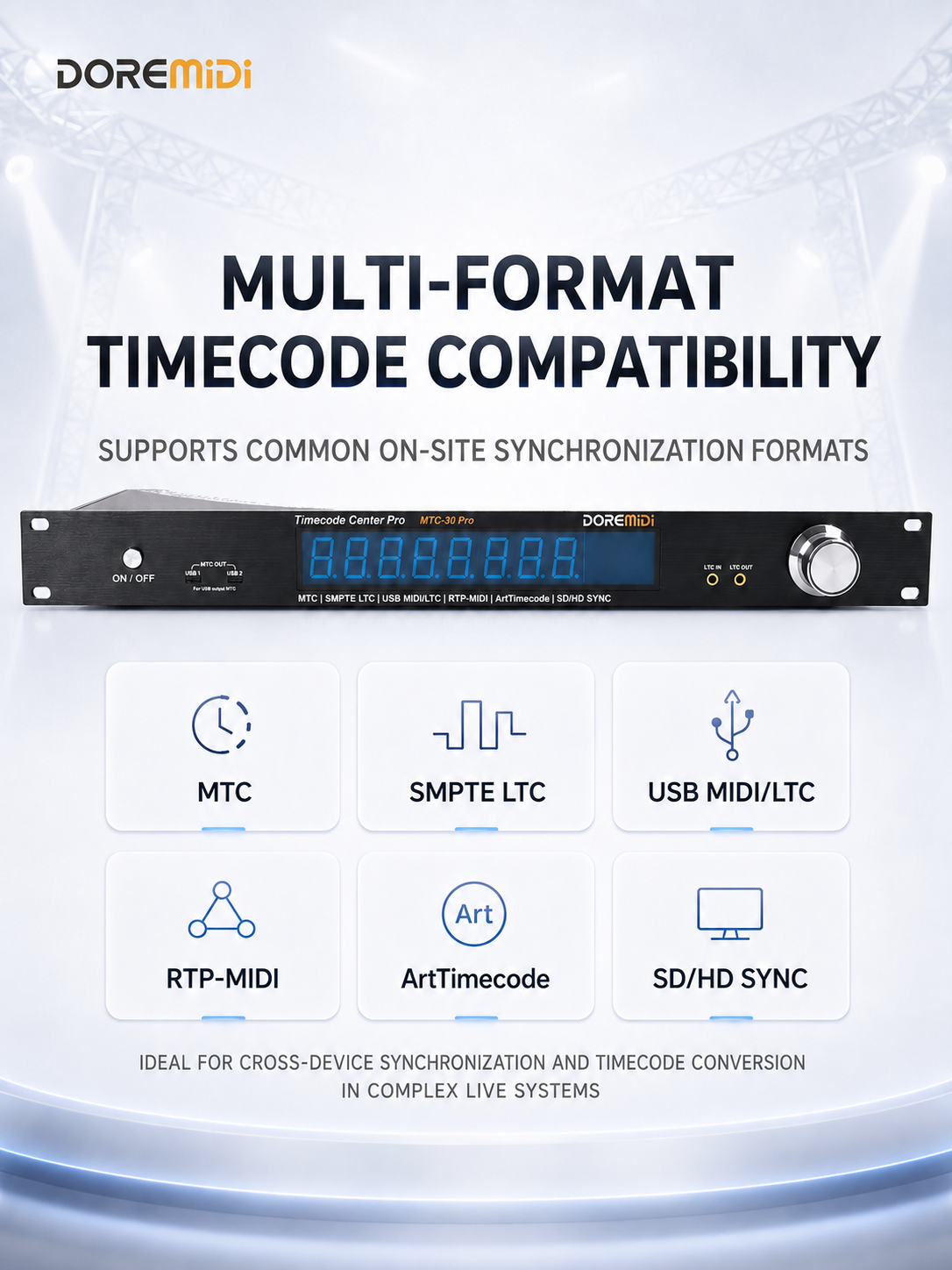

MTC-30 Pro supports multiple timecode formats, including:

·      MIDI Timecode (MTC)

·        SMPTE LTC timecode

·        USB MIDI timecode

·        USB LTC audio timecode

·        RTP-MIDI network timecode

·        Art-Net timecode / ArtTimecode

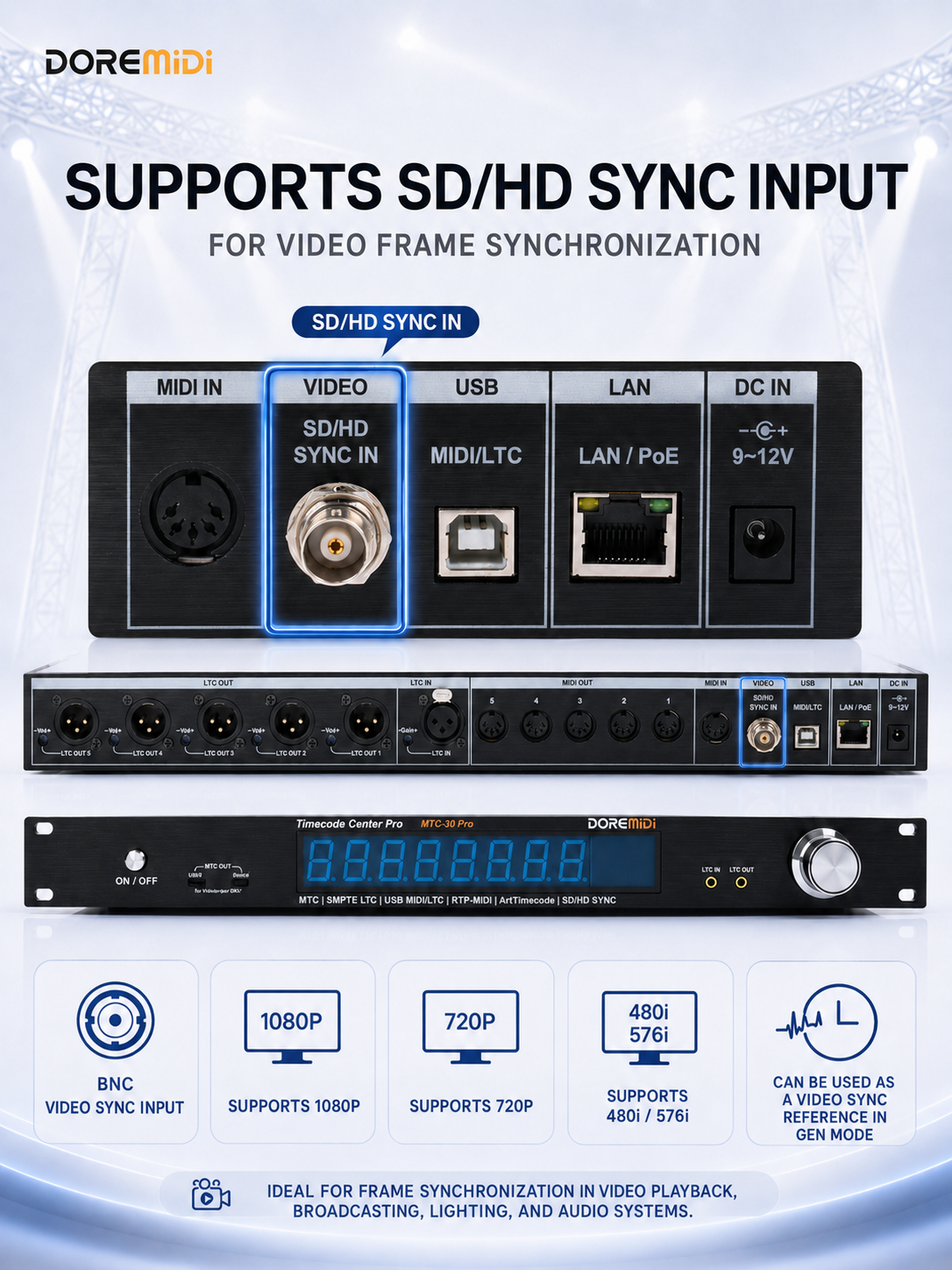

·        SD/HD video frame sync

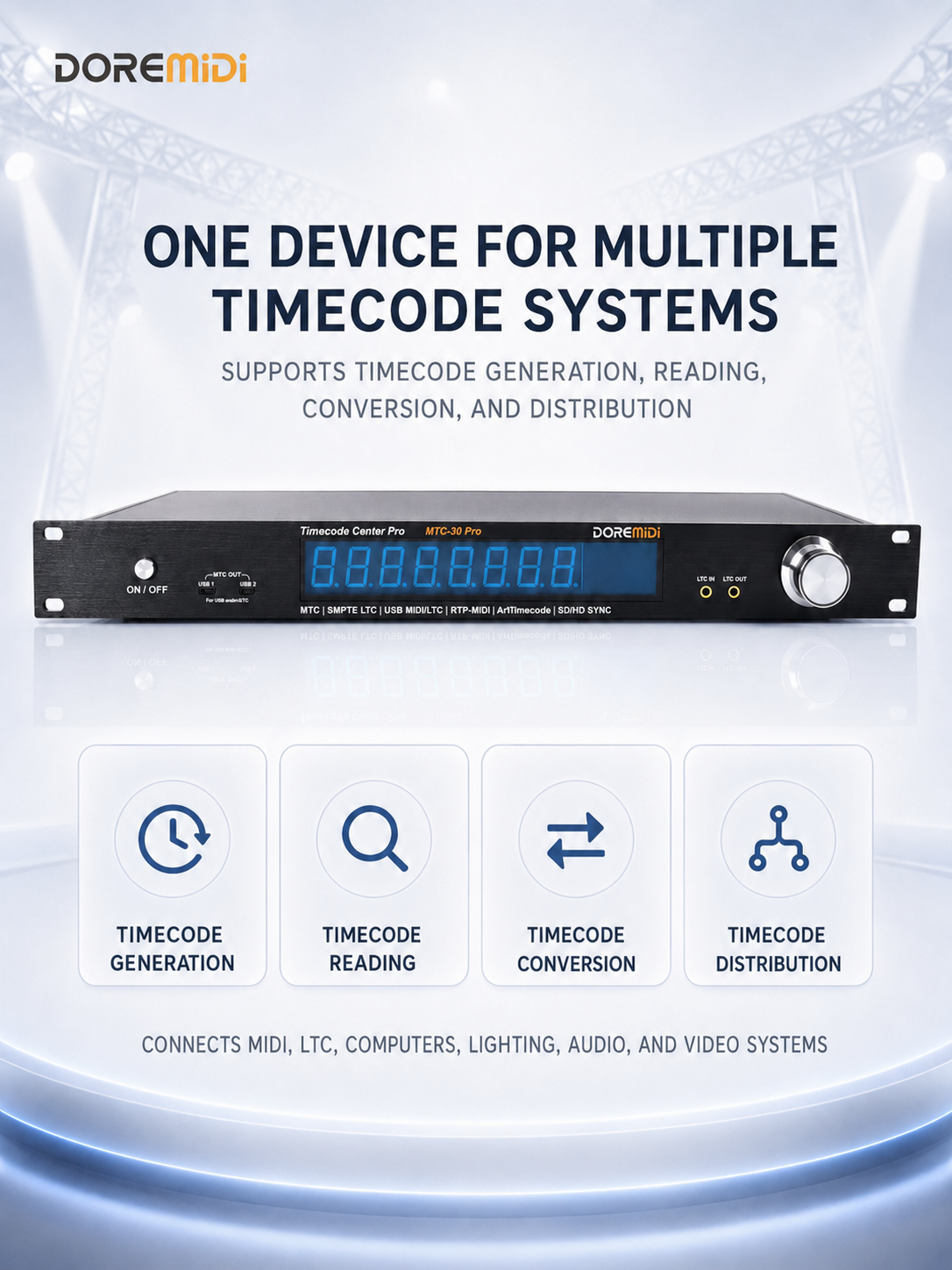

MTC-30 Pro supports timecode generation, reading, conversion, and distribution.

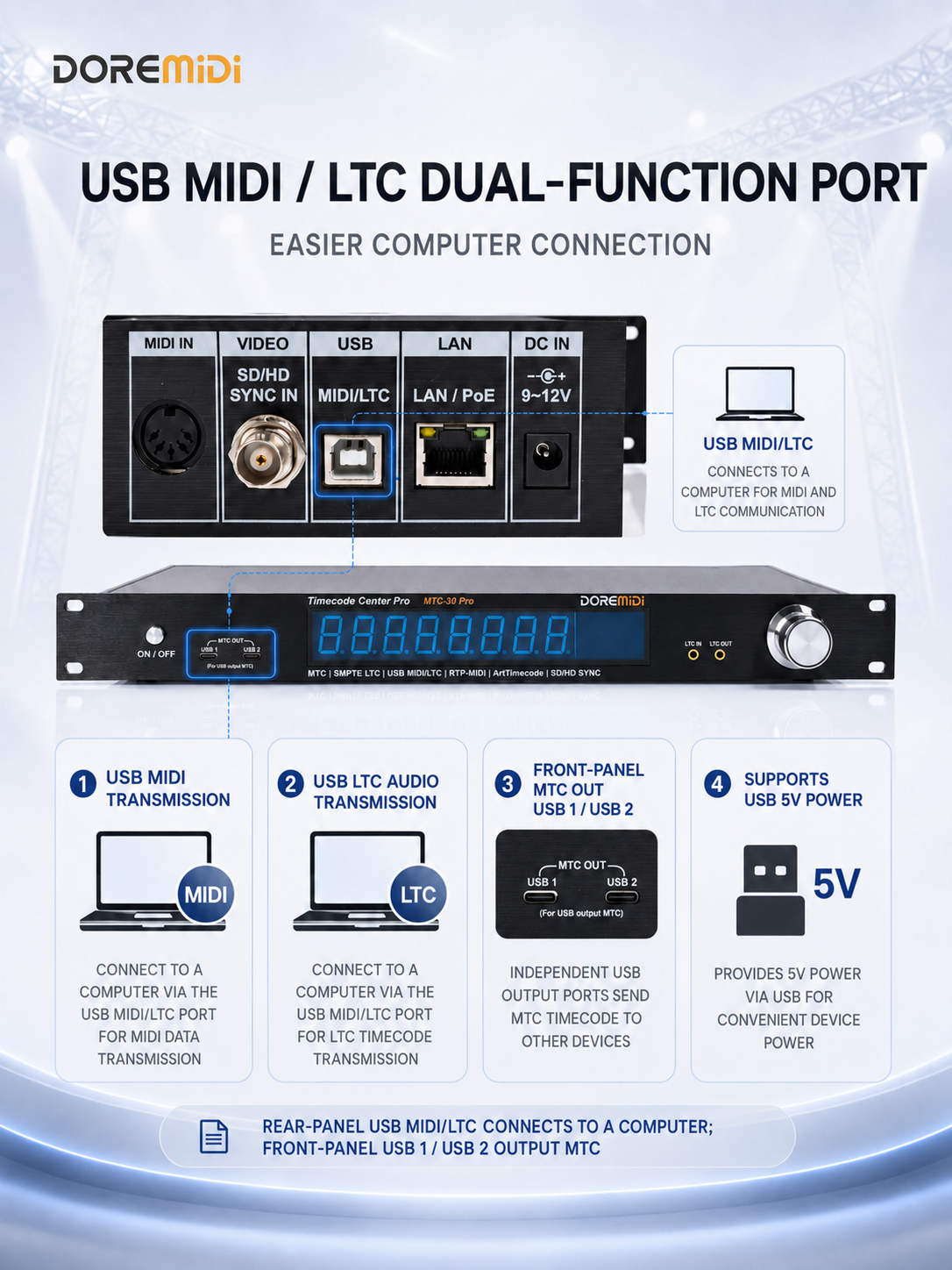

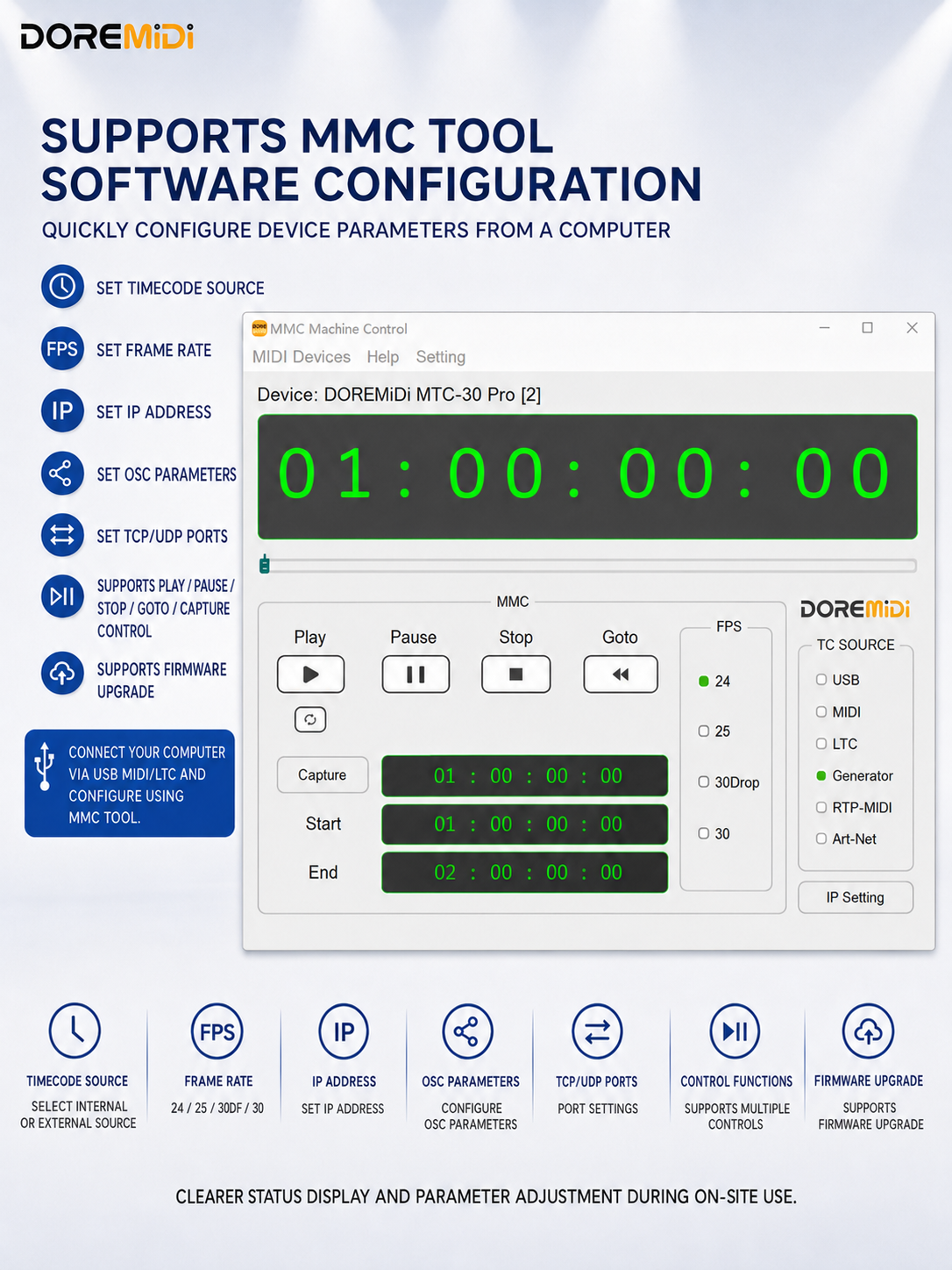

It canbe controlled via the standard MMC (MIDI Machine Control) protocol, and canconnect to different systems via USB,

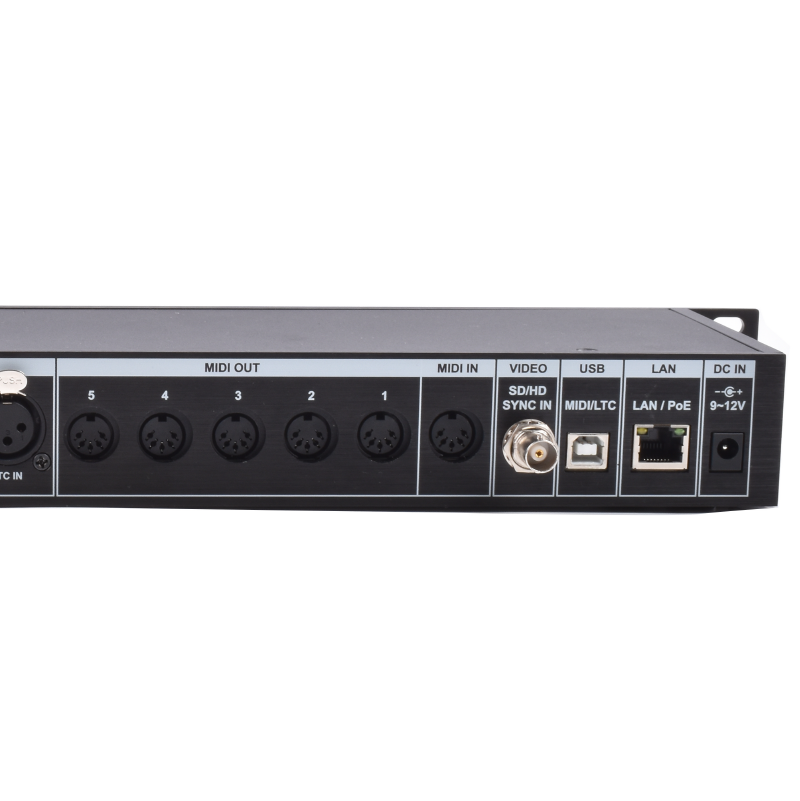

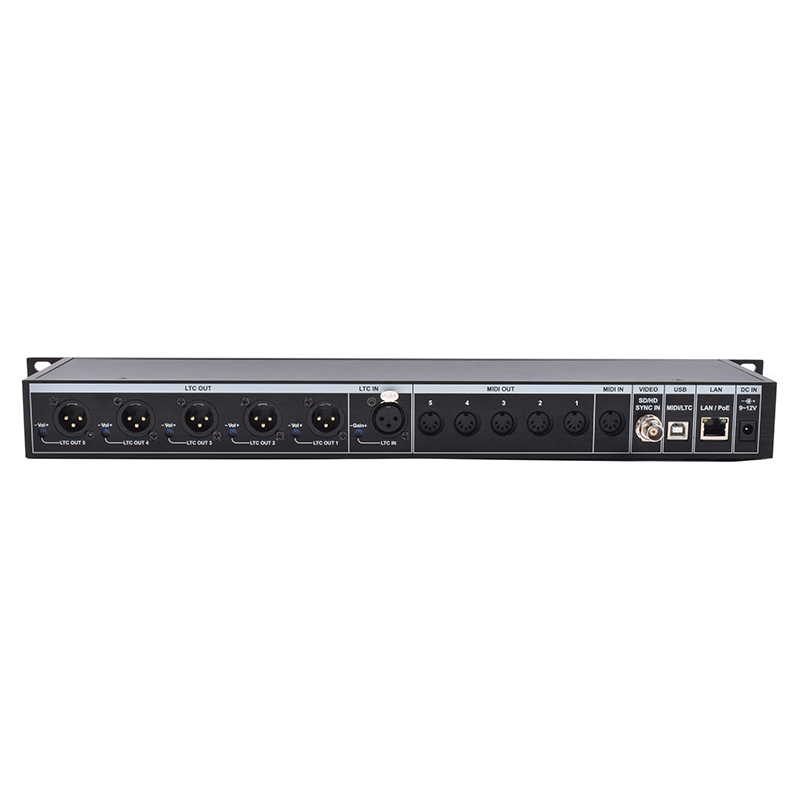

5-pin MIDI ports, LTC ports, Ethernet,and other interfaces.

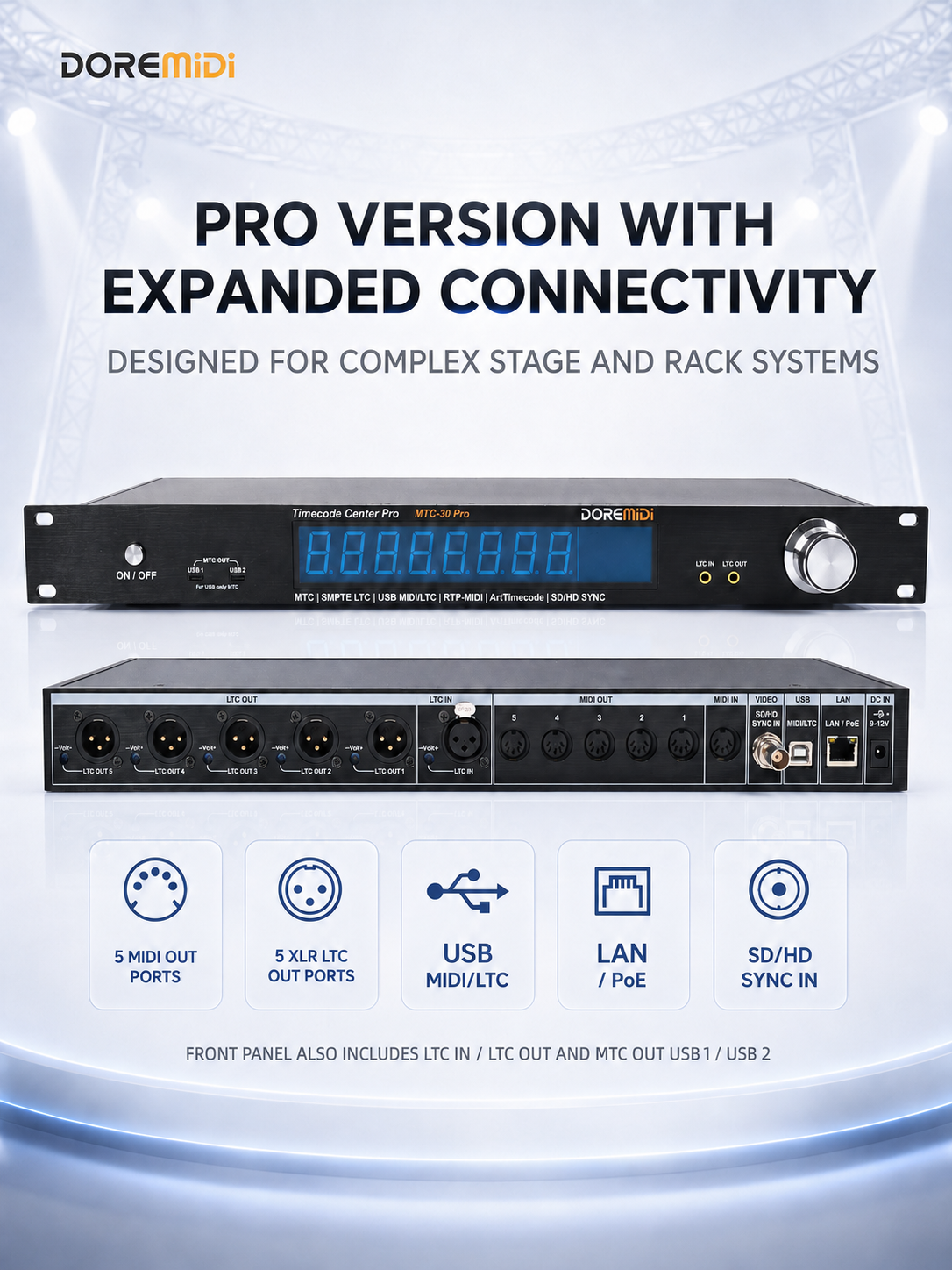

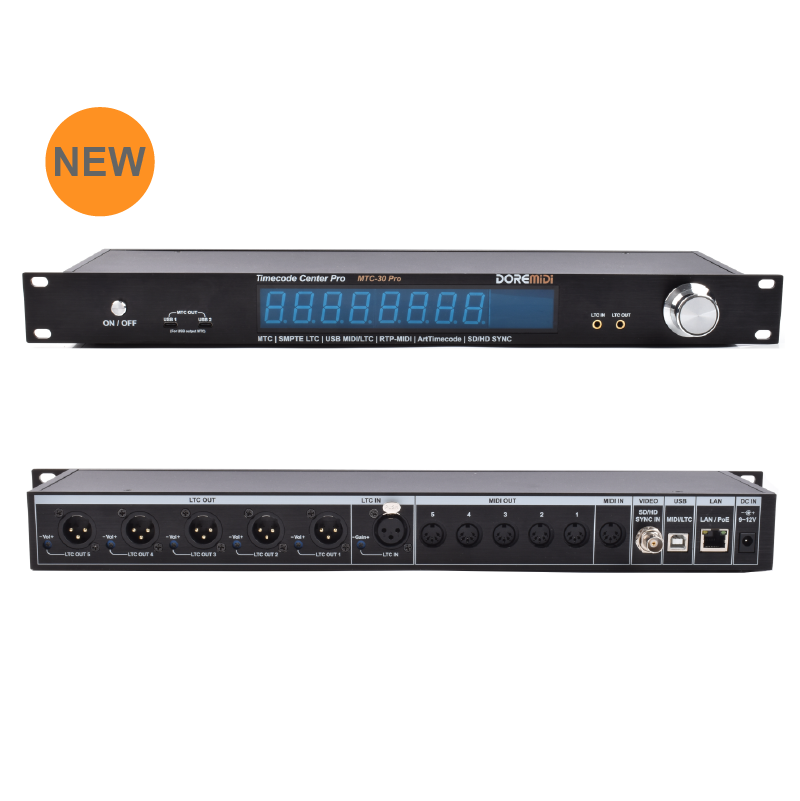

Comparedwith MTC-30, MTC-30 Pro provides more interfaces and stronger on-site expansioncapability,

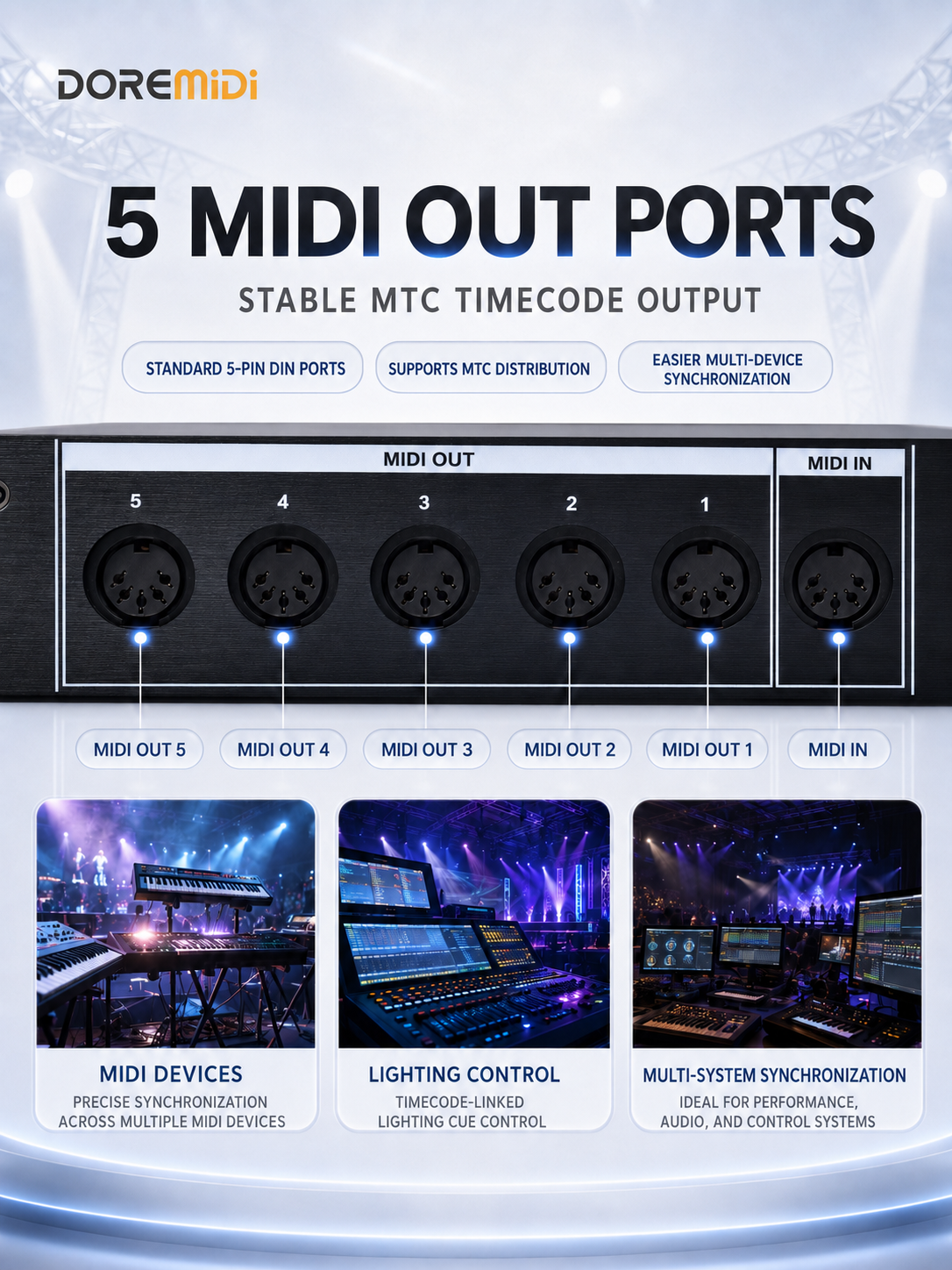

including multiple MIDI OUT ports,

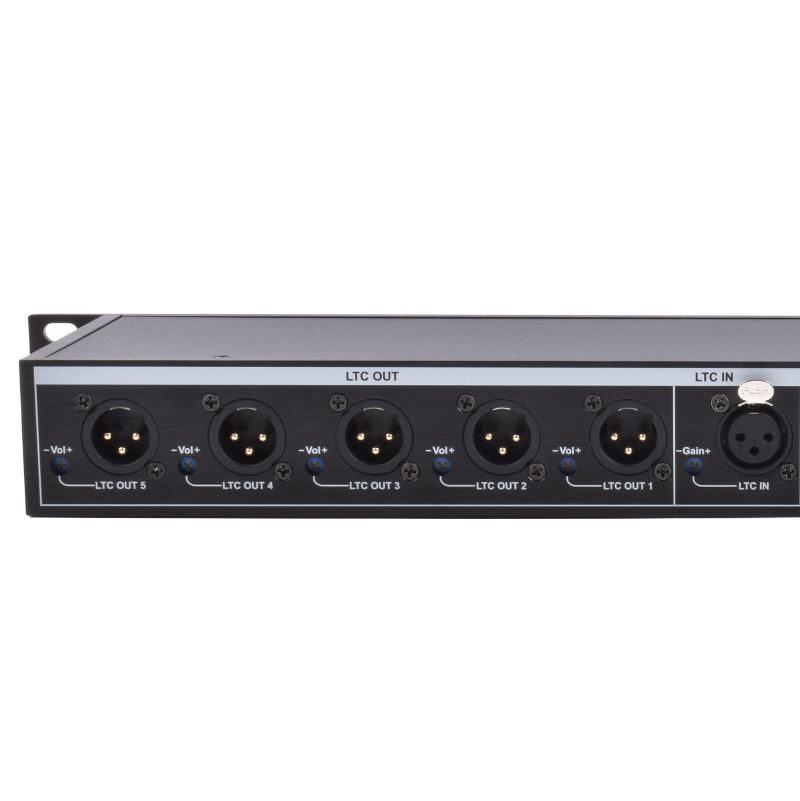

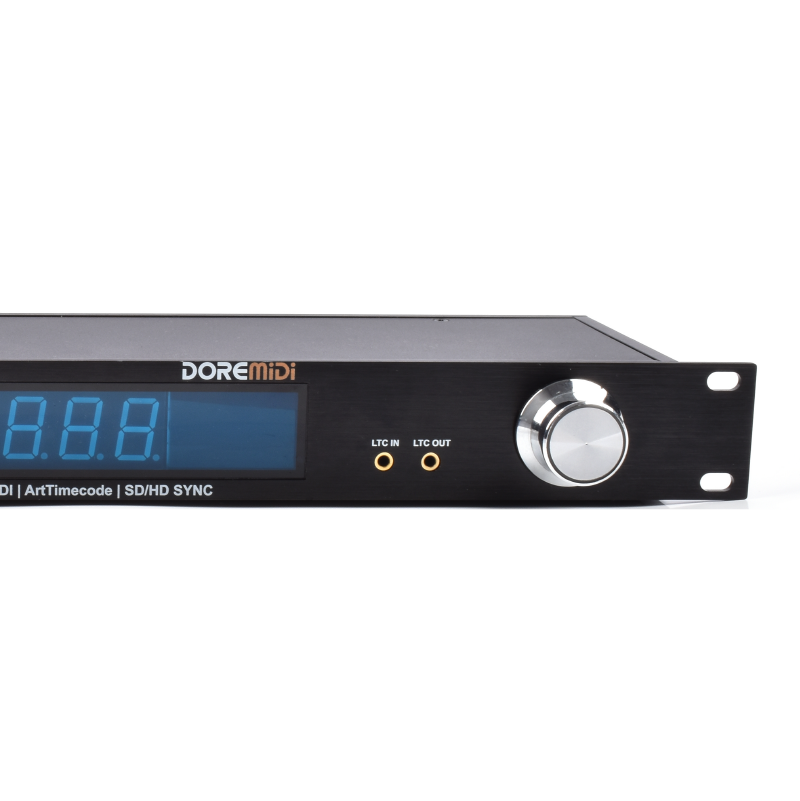

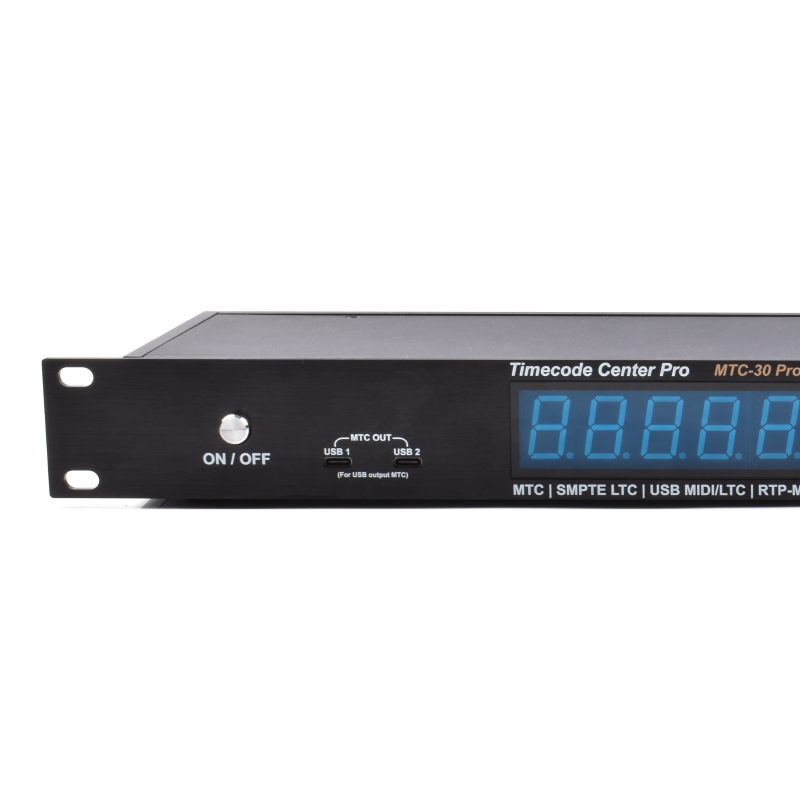

multiple LTC OUT ports,front-panel 3.5 mm LTC input/output ports, and two MTC OUT ports.

It issuitable for stage performances, lighting synchronization, audio production,video playback, timecode distribution,

and similar applications.

Inaddition, MTC-30 Pro features an Ethernet port with PoE capability,

allowingthe product to be powered through a PoE gateway device.

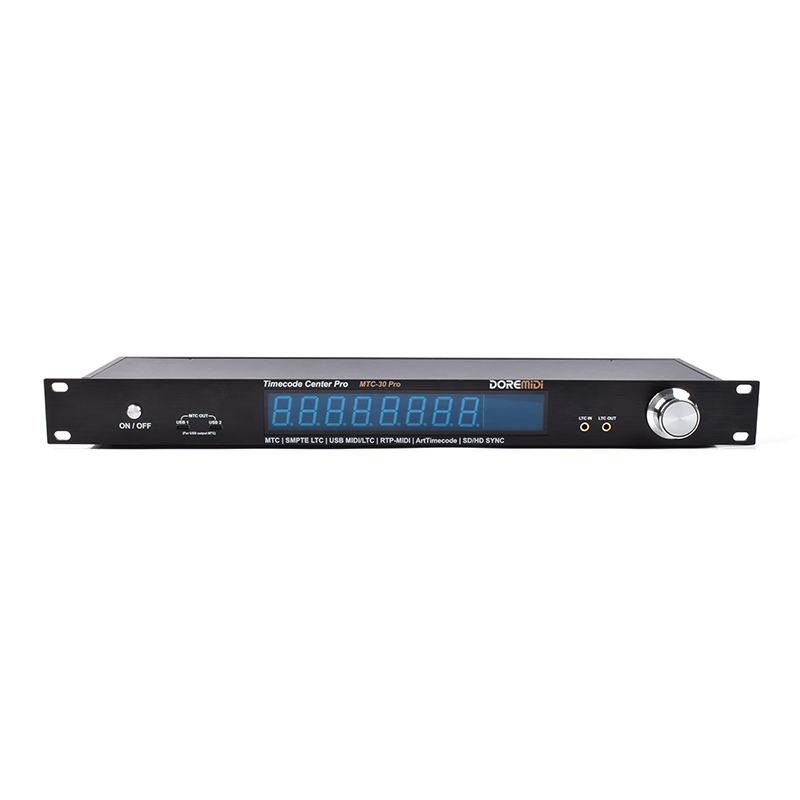

It uses an 8 x 0.8-inchnumeric display plus a 2.0-inch display, making it easy to view timecode andconfigure operating parameters.
