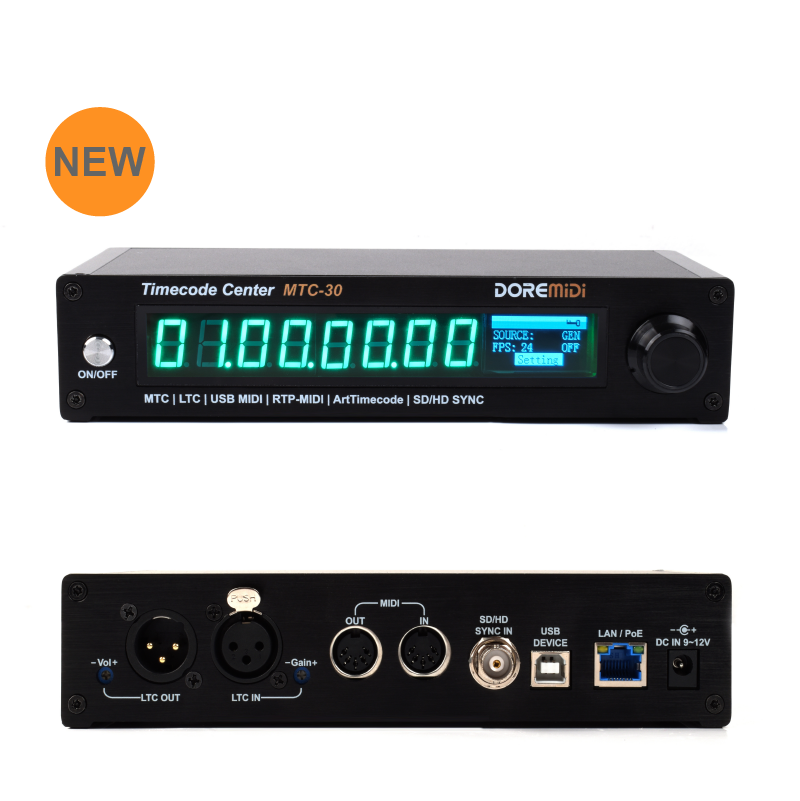

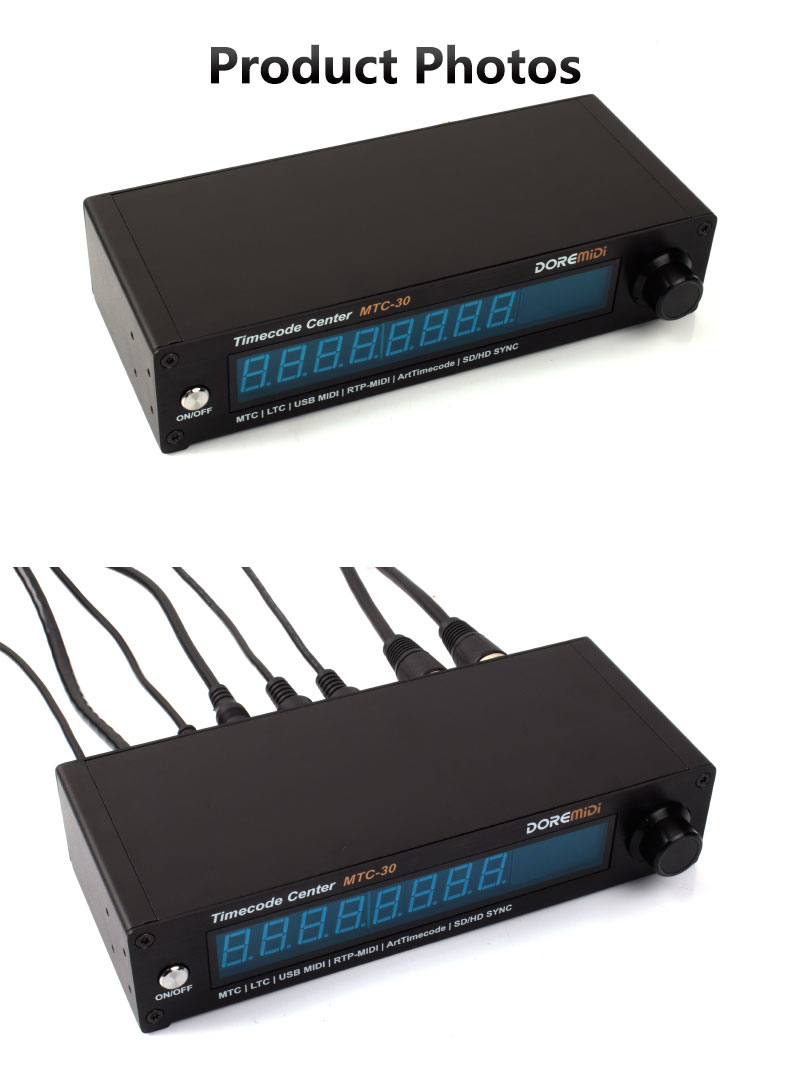

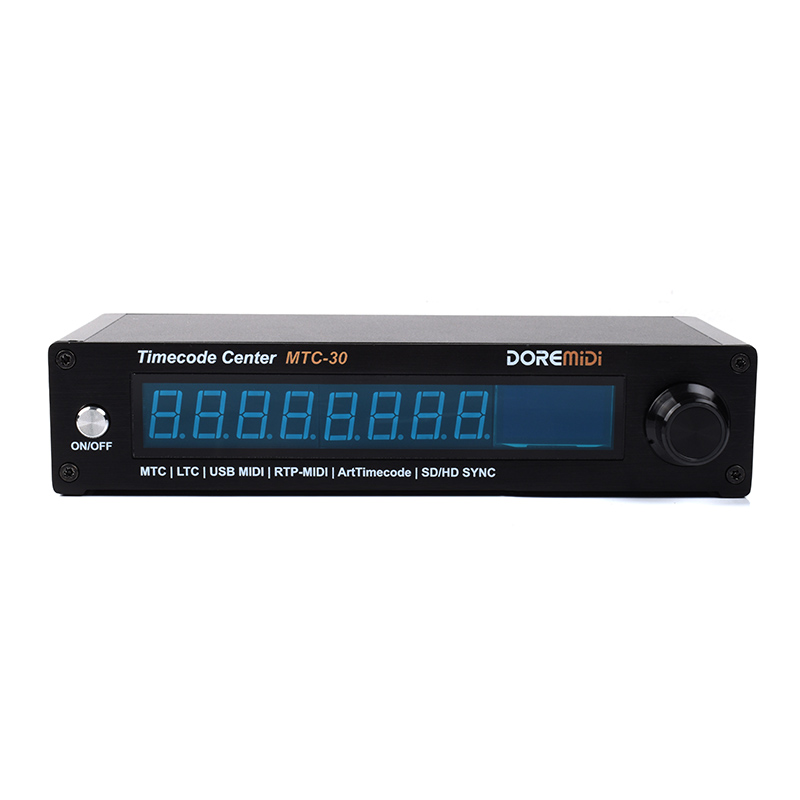

The Timecode Center (MTC-30) is a multifunctional time code product designed by DOREMiDi.

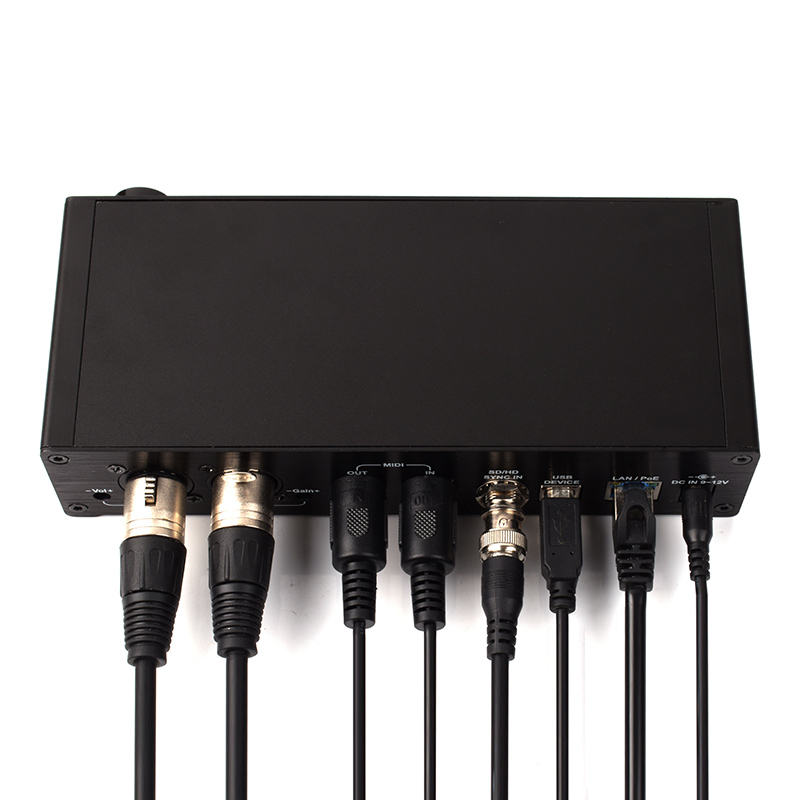

MTC-30 has RTP-MIDI network time code, Art-Net time code, SMPTE LTC, MIDI time code, USB time code, SD/HD video frame synchronization,
and can be used for time code synchronization between computers, MIDI devices, DMX devices, and LTC devices.
MTC-30 supports time code generation, time code conversion, and time code reading,
and can use the standard MMC protocol (MIDI Machine Control) to remotely control time code.
In addition, MTC-30 has power over Ethernet, which can be powered by a PoE gateway,

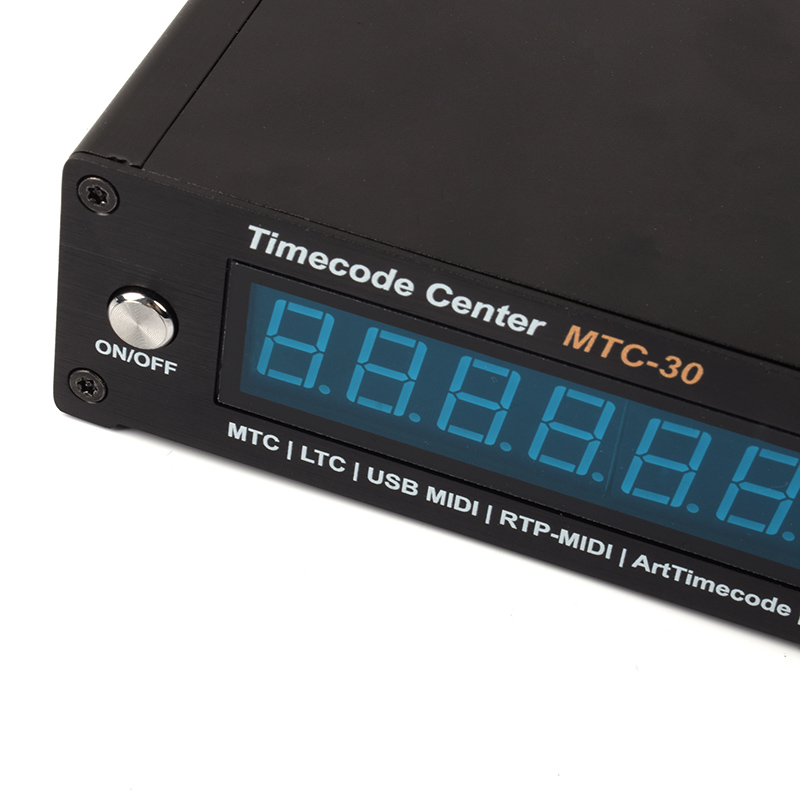

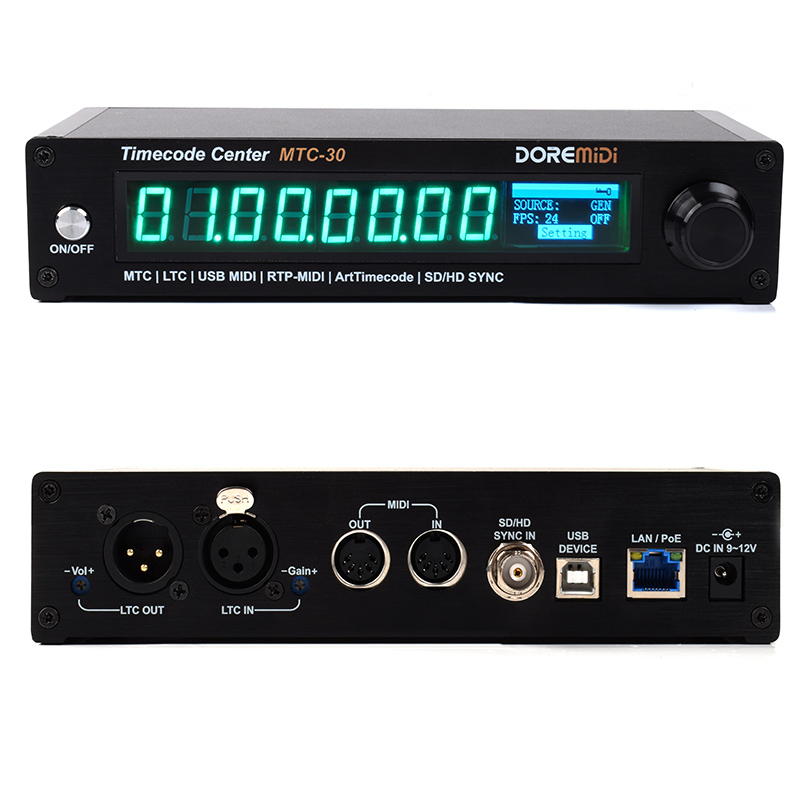

and uses an 8 x 0.56” digital + 1.3” display design,
which can clearly display the time code and is also convenient for setting the working parameters.
MIDI Timecode Center-MTC-30 Instructions.pdf
DOREMiDi MIDI Machine Control>>
Firmware History
| Version | Release Date | Firmware Download | Update Content |
| V1.7.2 | 2026/1/21 | MTC-30_V1.7.2_En.zip | 1. Resolving the impact of MIDI machine control messages in Logic Pro. 2. Compatible with QLab for receiving RTP-MIDI timecode. |
| V1.6.9 | 2025/10/8 | MTC-30_V1.6.9_En.zip | Resolves the issue when the network has a subnet mask of 255.0.0.0. |

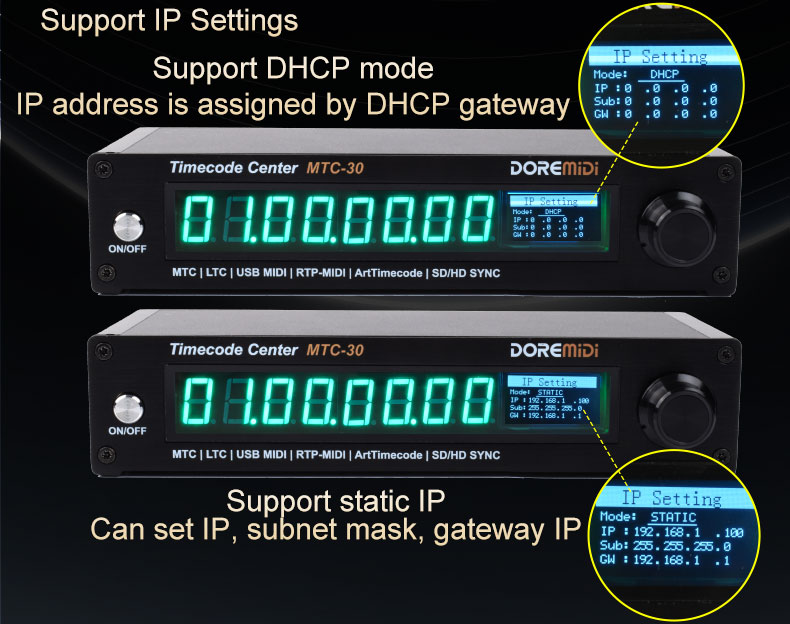

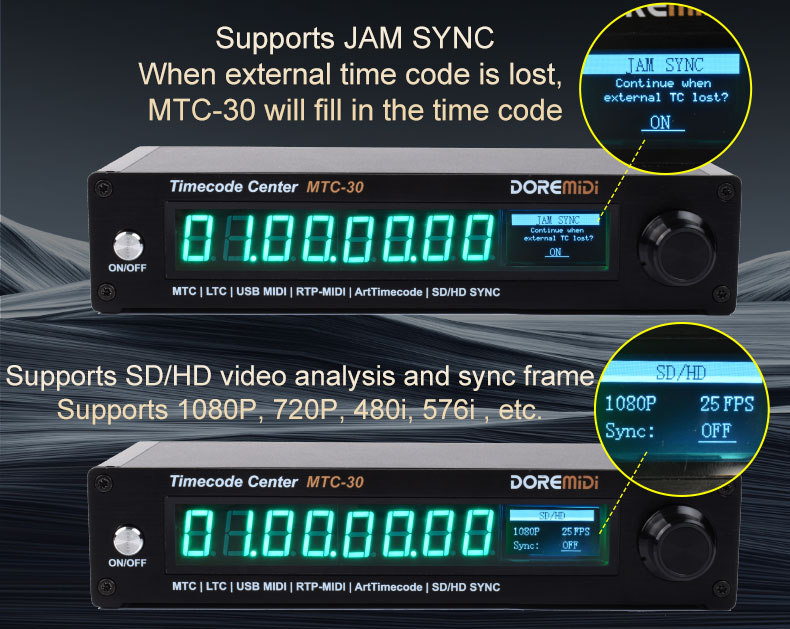

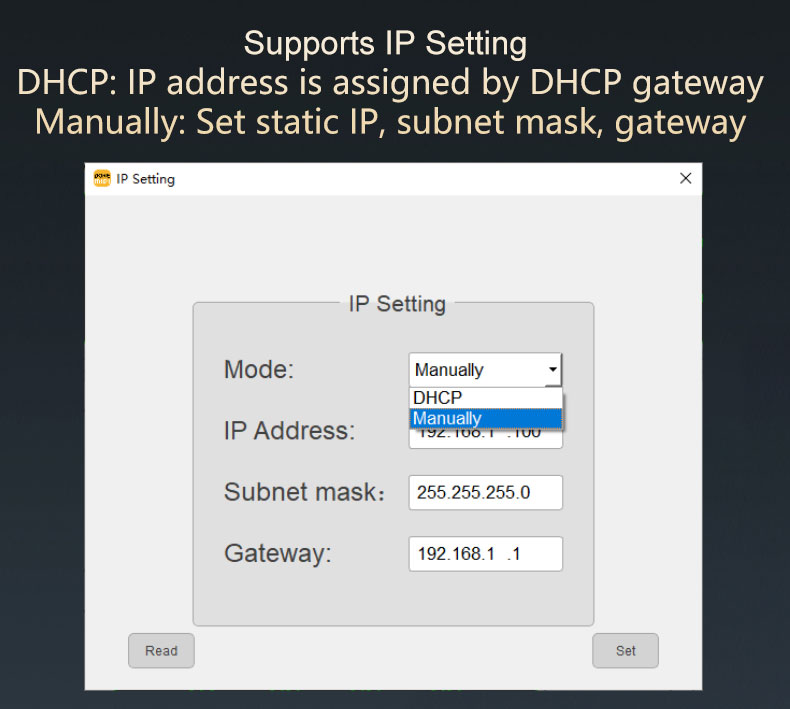

| V1.6.8 | 2025/8/26 | MTC-30_V1.6.8_En.zip | 1. Optimized timecode synchronization. 2. Optimize IP reading and setting. 3. Added a switch compatible with Hirender S3/P1 software. Turn on the compatibility switch in "Setting"-"HirenderCompat". In this compatibility mode, JAM SYNC and SD/HS SYNC functions will be cancelled. 4. Added Artnet time code. Configure Stream ID in "Setting"-"ArtTimecode ID". The default is 0. Stream ID is used to mark Artnet time code and can be used when there are multiple Artnet time codes in the LAN. 5. Added a "Lock Time" interface to set the lock screen timer. |

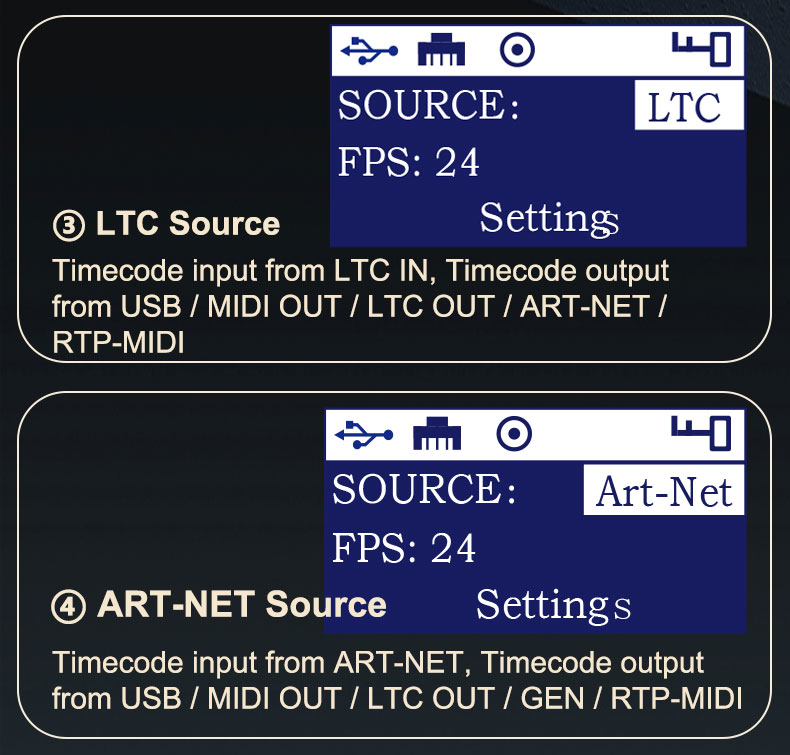

| V1.6.2 | 2025/6/30 | MTC-30_V1.6.2_En.zip | When the timecode source is LTC, the MTC-30 will filter out audio that is not standard LTC. |
| V1.6.1 | 2025/6/10 | MTC-30_V1.6.1_En.zip | 1. When the time code source is LTC, MTC-30 will prioritize the LTC IN time code as the synchronization standard, and the video synchronization signal will not affect the time code conversion. 2. When the LTC input time code is within ±6% of the nominal speed, it will be converted to MTC time code and sent to MIDI, USB output port, RTP-MIDI and Art Timecode. 3. When the LTC input time code faster or slower than 6% of the nominal speed, MTC-30 will output full-frame MIDI time code (MTC), which is generally used for MTC software positioning. 4. The menu adds firmware version display. |
| V1.5.9 | 2025/5/21 | MTC-30_V1.5.9_En.zip | Optimize the synchronization of MTC-30 timecode looping: When the MTC-30 is using an external timecode source (LTC/MIDI/USB/RTP-MIDI), if the external timecode is looping, the MTC-30 will also sync, but each time the loop starts, 1 second will be used for tracking. |
| V1.5.7 | 2025/5/15 | MTC-30_V1.5.7_En.zip | Optimize TC brightness. |
| V1.5.4 | 2025/4/30 | MTC-30_V1.5.4_En.zip | In "GEN" mode, timecode is synchronized when timecode is stopped. |
Operation steps:

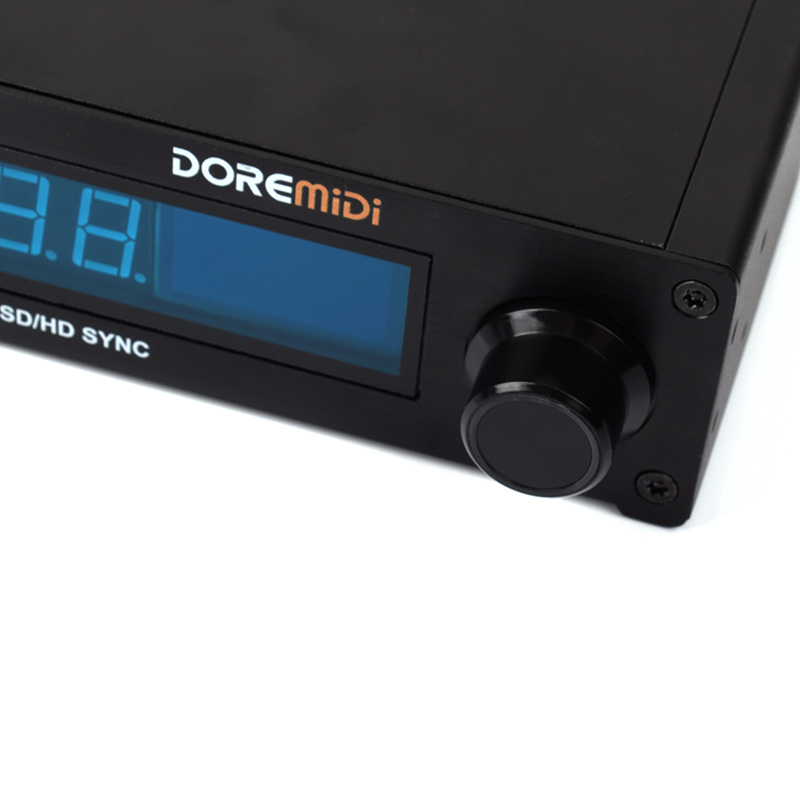

→Press and hold the knob to turn on (enter upgrade mode).
→MIDI Machine Control-Help-Upgrade-Connect.
→Select the .bin file and click "Upgrade".
(Some version of MIDI Machine Control will automatically download the new firmware and upgrade.)
(If the connection fails, the product may be occupied. Please close other application software, such as MA software.)
